Leveling Kit Installation
Leveling Kit Installation for trucks and 4x4s across the Rio Grande Valley — front-end leveling installed with matched shocks and an alignment so the truck sits level and drives straight.
Leveling Kit Installation at a glance
- Work covered
- Front leveling · matched shocks
- Lift
- 1–2.5 in front
- Cost range
- $250–$1,100
- Included
- Four-wheel alignment
Leveling Kit Installation for a level, capable stance
Most trucks leave the factory with a rear that sits higher than the front, which is useful when loaded but looks nose-down and can limit front tire clearance when empty. A leveling kit raises the front to match the rear, giving the truck a level stance and room for slightly larger tires without the cost and complexity of a full lift. Our Leveling Kit Installation service installs the kit, matches the shocks to the new height, and aligns the truck afterward so it still tracks straight. It is the practical middle ground between stock height and a full off-road lift.
- Front leveling kitted to your truck and intended tires
- Shocks matched to the new front height
- Four-wheel alignment included after the install
Signs a leveling kit is right for you
A leveling kit is a small change with a visible payoff, and it fits a specific set of goals. These are the reasons customers ask for one.
- The truck sits nose-down and you want a level stance
- You want a bit more front clearance for larger tires
- You do not need full off-road lift height
- You want to keep the factory ride close to stock
- You tow lightly and do not need a heavy rear-lift setup
- You want the simplest way to fit a modest tire upgrade
What a leveling install includes
Every install is quoted as a complete job, including the parts and the alignment most shops leave out.

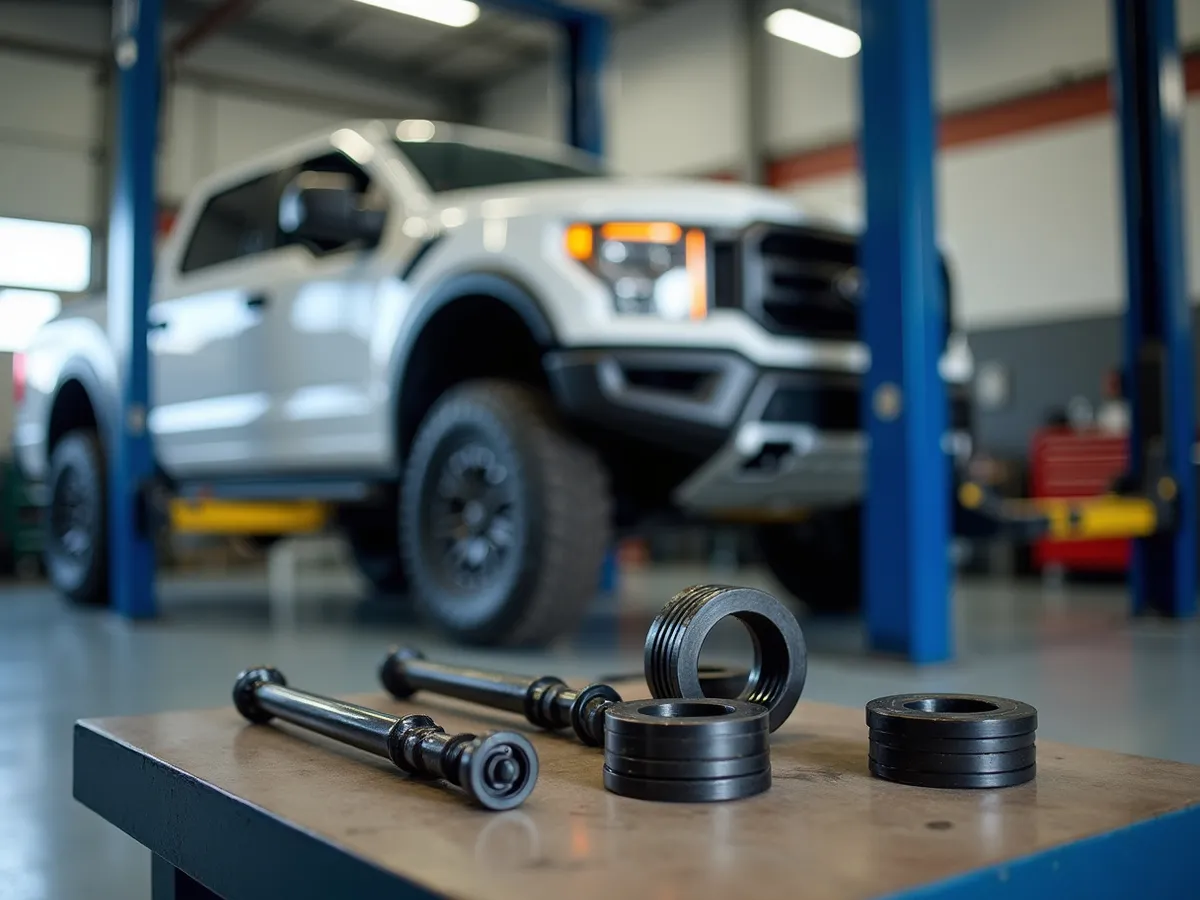

- Strut-spacer or coil to raise the front to level
- Shock replacement matched to the new front height
- Sway-bar and bump-stop check and adjustment
- Brake-line and ABS-wire clearance check
- Four-wheel alignment after the kit is installed
- Steering-angle sensor reset where the vehicle needs it
- A road test and a torque re-check on all fasteners
- Advice on the largest tire that will fit without rubbing
How a leveling install works
We follow the same sequence every time so the truck sits level and drives right.
-
1. We measure the current front and rear ride height.
-
2. We inspect the struts, shocks, and ball joints for wear.
-
3. We install the leveling spacers or coil to the spec height.
-
4. We fit shocks matched to the new front height.
-
5. We check brake lines, wires, and sway-bar links for clearance.
-
6. We align all four wheels and center the steering wheel.
-
7. We road-test, re-torque, and confirm the stance and clearance.
What a leveling kit costs
A leveling kit is the most affordable way to change a truck's stance, but the total still depends on the kit, whether new shocks are added, and the vehicle. A basic spacer kit is the low end; a kit with matched shocks and an alignment is higher. Prices are variable by year, make, trim, and whether the truck is two- or four-wheel drive, so we quote a range after confirming your setup. The labor and alignment are a real part of the cost, and skipping the alignment is how a level truck starts eating tires.
- Leveling spacer kit install
- $250–$550
- Leveling kit with matched shocks
- $500–$1,100
- Alignment after leveling
- $90–$180
- Strut replacement during install
- $400–$900
- Tire-size fitment check: included
Leveling fitment by vehicle
Kit thickness and design differ by model and drivetrain, so we match the leveling kit to your exact truck and the tire size you plan to run. Two-wheel-drive and four-wheel-drive versions of the same truck often take different kits, and the amount of front lift you can add safely depends on the suspension design.
- Ford F-150 and Ranger, 2WD and 4x4
- Chevy Silverado, GMC Sierra, and Chevy Colorado
- Ram 1500 and 2500, gas and diesel
- Toyota Tacoma, Tundra, and 4Runner
- Jeep Gladiator and Wrangler front leveling
- Nissan Frontier and Titan pickup front ends
Why leveling is popular in the Valley
Valley drivers like the leveled look for good reasons. A level stance improves the truck's appearance and front clearance without the cost, complexity, or taller insurance of a full lift. It lets many trucks fit a slightly larger tire that handles ranch roads and wet fields better than the stock size. Around town it keeps the ride and fuel economy closer to stock than a tall lift would. For trucks that work and play but do not crawl trails every weekend, a leveling kit is the sweet spot, and it is one of the most common modifications we install.
- Better stance and front clearance without a full lift
- Room for a modest tire upgrade for ranch and field use
- Keeps ride quality and economy closer to stock
How we work and what you get
Leveling is a small job with a few decisions, and we walk you through them. We measure your truck, talk about the tire size you want, and recommend the right kit height so nothing rubs and the alignment stays in range. You get matched shocks if the originals cannot handle the new height, and an alignment so the front end stays true. We show you the before-and-after ride height and confirm the stance is level, not just taller. If a full lift would serve you better, we say so instead of selling a leveling kit that does not meet your goal.
- The right kit height for your truck and tire plan
- Matched shocks when the originals are at their limit
- Before-and-after ride height and an alignment to finish
Leveling kit versus a full lift
The choice between leveling and a full lift comes down to how you use the truck and how much clearance you need. A leveling kit is the simple, affordable path for a daily driver that wants a better stance and a modest tire upgrade. A full lift adds real off-road height and articulation but brings more parts, more correction, and a higher bill. Many drivers start with a leveling kit and move to a lift later if their use changes. We help you pick based on where you drive, what you tow, and the look you want, rather than pushing the bigger job.
- Leveling: simple, affordable, stance and modest clearance
- Full lift: real off-road height with more parts and correction
- We match the choice to your driving and towing, not the upsell
Living with a leveled truck
A leveled truck needs the same basic care as any other, plus a couple of habits specific to the change. Keep the alignment in spec, especially after a hard bump or a trail run, because the front end now sits higher and small angle changes matter more. Rotate and balance the tires on schedule so the new stance does not create a wear pattern. Watch the front shocks, since a leveling kit loads them slightly differently. And if you load the bed heavily or tow often, remember that leveling raises the front but does not add rear capacity, so airbags or a helper spring may still be worth it.
- Keep the alignment in spec after bumps and trail runs
- Rotate and balance tires so the stance does not cause wear
- Add rear support if you load or tow heavily
From the service bay
Questions from the bay
How much does a leveling kit raise the front?
Most kits raise the front one to two and a half inches, enough to match the rear and level the stance. The right amount depends on your truck's factory rake and the tire size you want to run without rubbing.
Need an alignment after a leveling kit?
Yes. Even a small front lift changes camber and toe, so we align all four wheels afterward. Skipping the alignment is the most common reason a leveled truck starts wearing tires unevenly.
Will a leveling kit affect my ride?
A spacer kit on stock shocks can stiffen the front slightly or feel a bit firm. Adding matched shocks keeps the ride controlled. For most drivers, a good leveling setup still rides close to stock.
Can I fit bigger tires after a lift?
Often yes, usually one size up from stock. We measure clearance and recommend the largest tire that fits without rubbing. Too big a tire will rub the inner fender or sway bar at full lock.
Do I need new shocks with a leveling kit?
Not always, but if your front shocks are tired or the kit exceeds their range, new matched shocks are worth it. We inspect them during the install and tell you honestly whether they can stay.
Does a leveling kit help with towing?
It levels the stance when empty, but it does not add rear capacity. If you tow or haul heavily, helper springs or airbags may still be needed so the rear does not squat under load.
How long does a leveling install take?
Most leveling installs take a few hours, plus the alignment. If new struts or additional parts are needed, it can run most of a day. We confirm timing before we start.
Is a leveling kit better than a full lift?
It depends on your goal. For a daily driver wanting a better stance and a modest tire upgrade, leveling is simpler and cheaper. For real off-road height and articulation, a full lift is the right choice, and we help you decide.
Will a leveling kit void my warranty?
It can affect warranty coverage on related front-suspension parts, but a correctly installed kit with an alignment limits that risk. We document the install so your records are complete.
